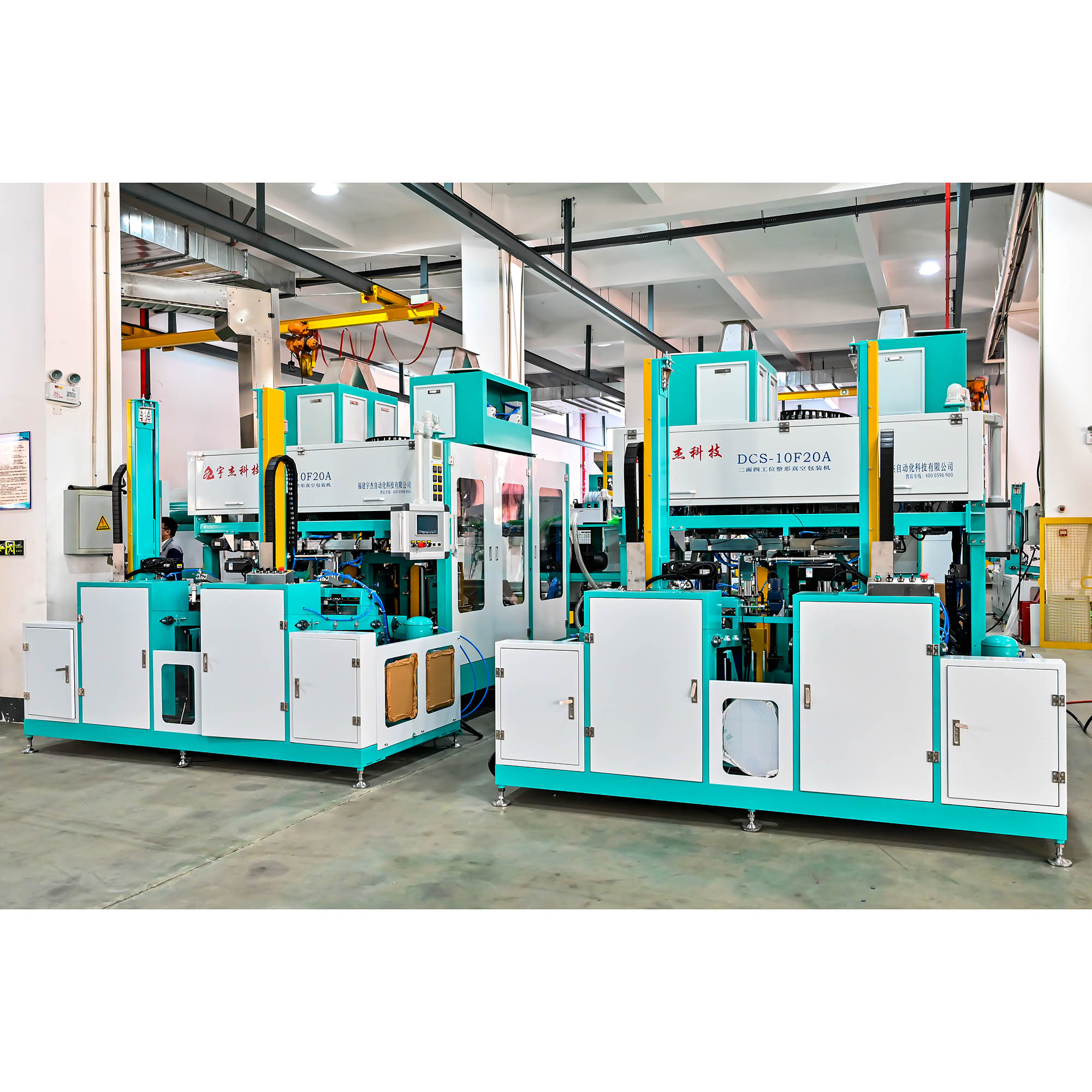

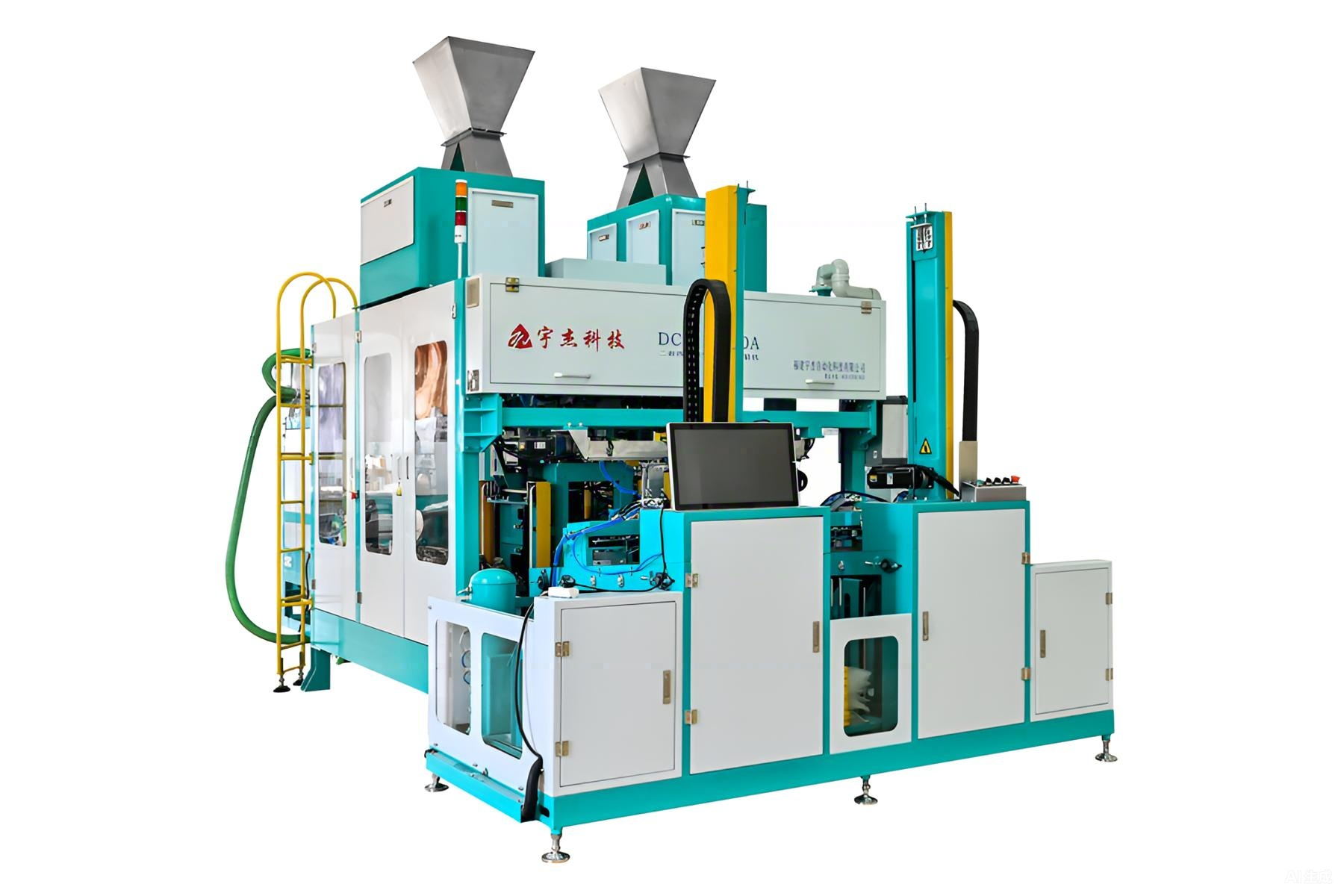

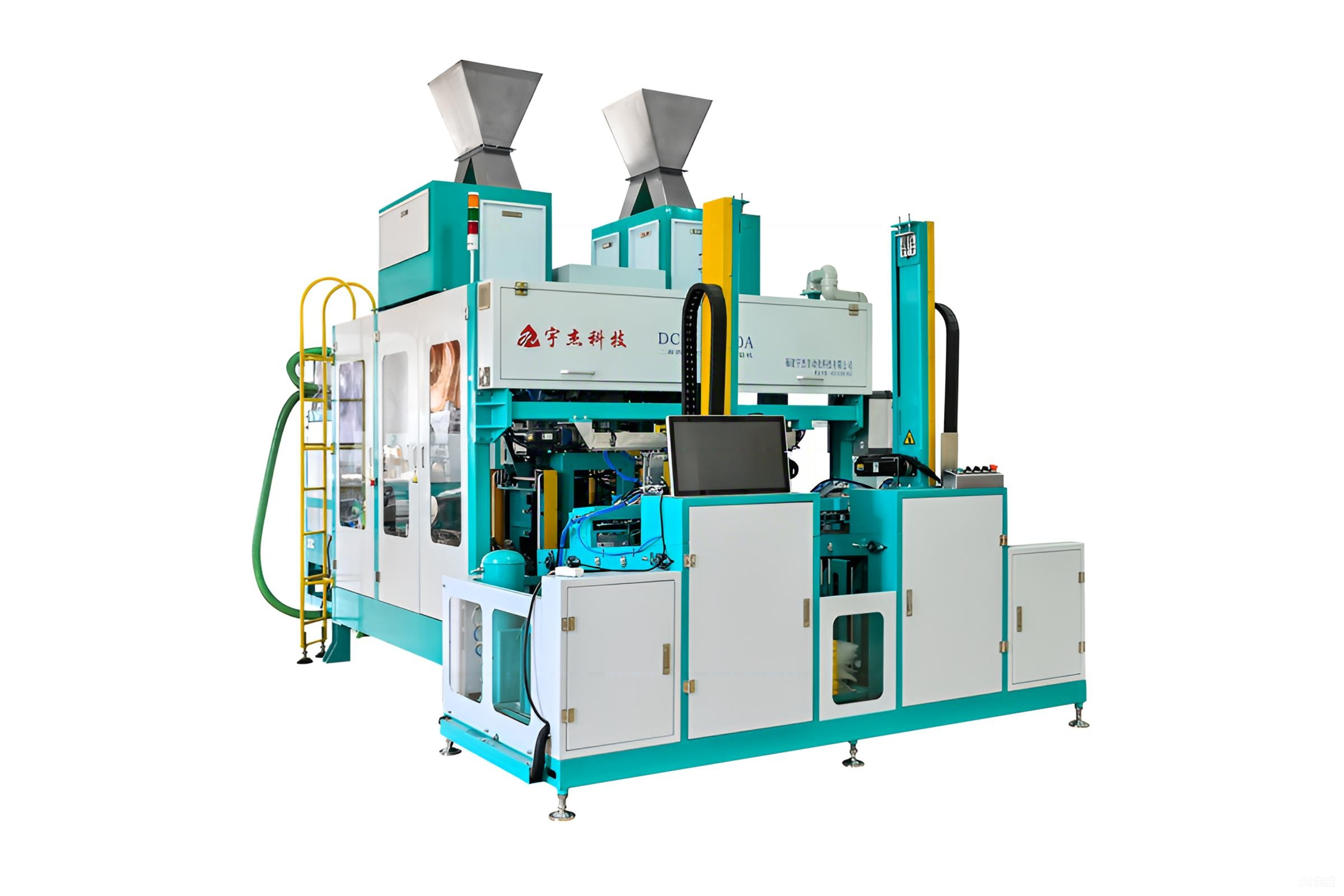

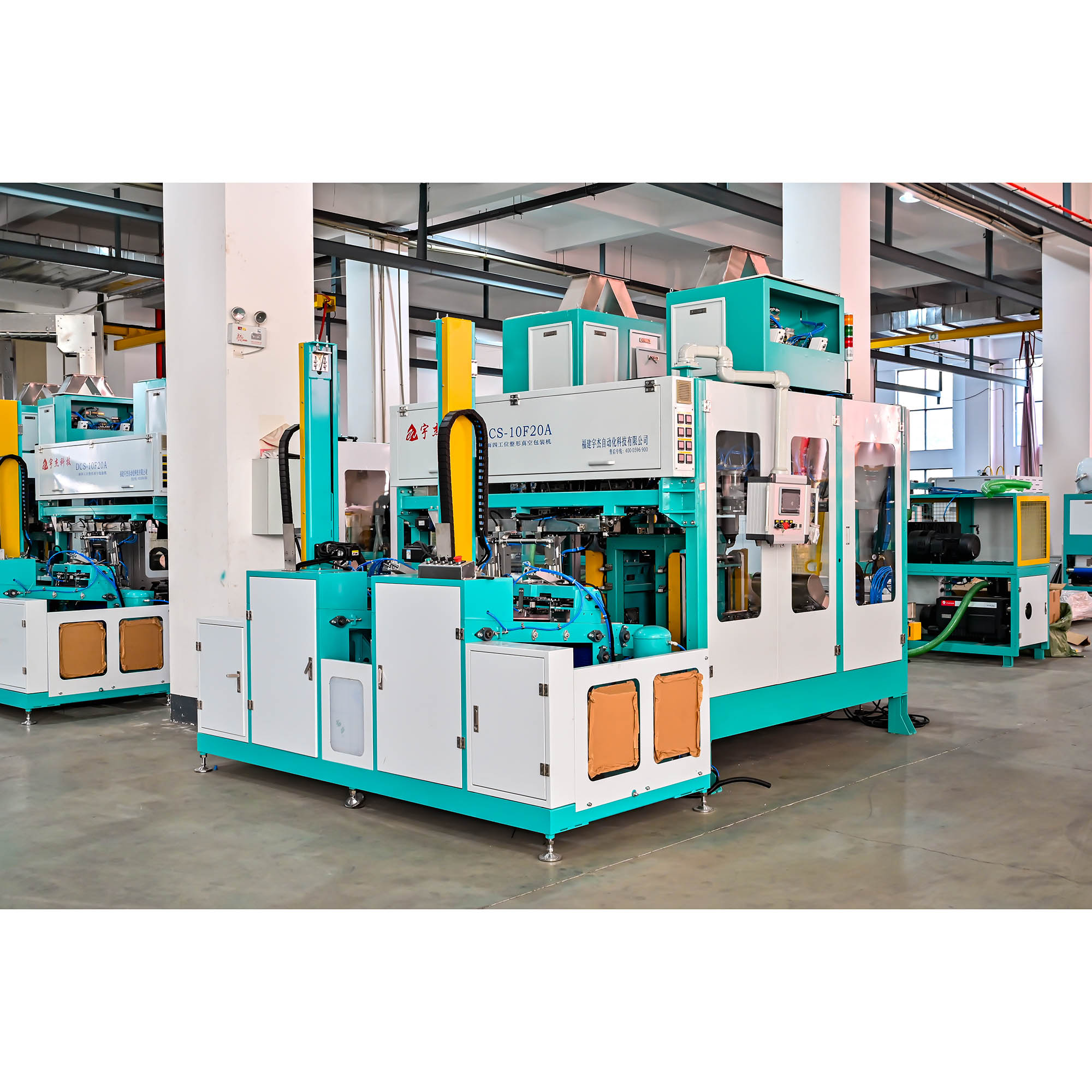

EnglishDCS-10F20A | 全自动两面（枕型）四工位真空包装机
使用我们的全自动真空包装机，实现高速、稳定、外观完美的真空包装。
包装成品展示
大米两面真空包装
瓜子两面真空包装
功能特点
01
流程全自动化
自动上袋、自动计量、自动灌装、自动真空（整形）、成品包装输出，实现全包装流程无人化
02
广泛的包装范围
成型机构容量范围宽，为2.5KG至10KG，适用于各种尺寸的包装
03
快速切换规格
设备可保存参数组，一键切换规格，并自动调整设备
04
双伺服电机四工位
高效的四工位包装，动作由伺服电机驱动，运行精准稳定，噪音小
05
三级称重加料系统
称重系统采用三级下料，下料流程依次快加，中加，慢加，保证称重速度和精度
技术参数
DCS-5F90A | 全自动两面（枕型）真空包装机
Specification | Parameter |
| Packing range | 2.5~10kg（Rice） |
| Packing speed | 1600-2000 packages/h |
| Packaging error | 2~5g |
| Power consumption | AC380V 50HZ 6kw |
| Air source requirements | 0.8mpa 25m3/h |
| Dimensions | length 2770* width 5927* height 2750 (mm) |
| Vacuum degree (MPa) | -0.07-0 (adjustable) |
Main components configuration
| No. | Component Name | Brand/Manufacturer |
|---|---|---|
| 1 | Programmable Logic Controller (PLC) | Siemens (Germany) |
| 2 | Expansion Module | Siemens (Germany) |
| 3 | Touch Screen | Beijer (Sweden) |
| 4 | Servo Drive | Delta (Taiwan) |
| 5 | Electric Cylinder | Zolay (China) |
| 6 | Electric Linear Actuator | Huifeng (China) |
| 7 | Switching Power Supply | Mean Well (Taiwan) |
| 8 | Terminal Block | Phoenix Contact (Germany) |
| 9 | Circuit Breaker & Contactor | Schneider (France) |
| 10 | Push Button Switch | Schneider (France) |
| 11 | Proximity Sensor | Schneider (France) |
| 12 | Pneumatic Components | Airtac (Taiwan) |
| 13 | Weighing Control Module | German Tech (China) |
| 14 | Vacuum Pump | Becker (Germany) |
| 15 | Temperature Controller | Omron (Japan) |
| 16 | Electronic Vacuum Gauge | Kingdon (Taiwan) |
Related Application Scenarios
Rich product system that can be applied to various industry scenarios
-
The rice packagingThe rice packaging industry is rapidly transitioning from manual operations to automation and intelligence. Facing multiple needs including moisture prevention, freshness preservation, efficiency improvement, and cost control, intelligent packaging systems have become key to industry upgrading. -
The coarse grain packagingThe coarse grain packaging sector faces challenges including small batch sizes, multiple varieties, and high-frequency production. Yujie's smart packaging system provides tailored solutions with precise weighing, rapid changeover, and high-efficiency packaging. This helps producers maintain freshness while meeting market demand for diverse and convenient packaging formats.
