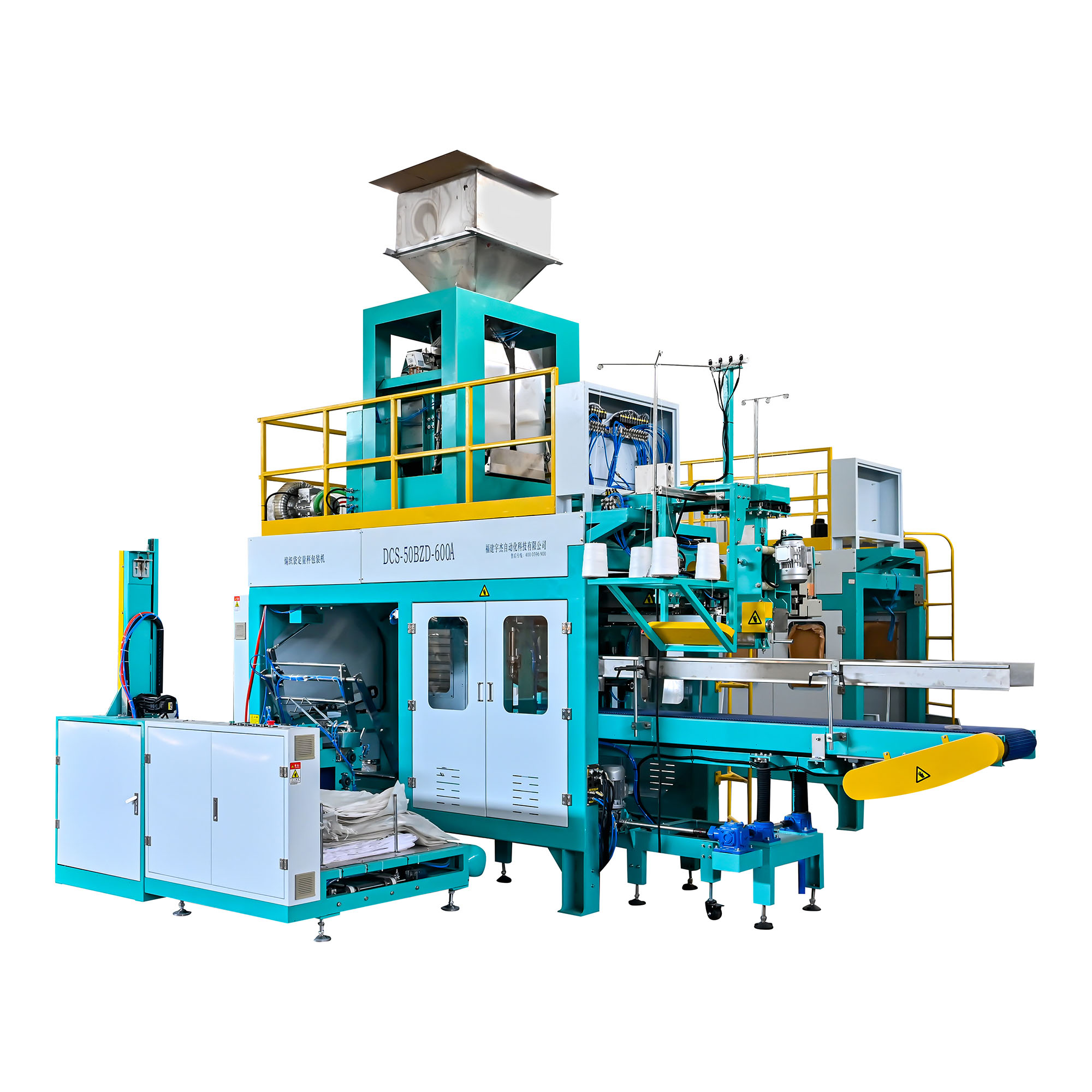

EnglishDCS-50BZD-600A | 全自动大袋定量包装机（25-50kg）
使用我们的全自动计量包装设备，实现高速、稳定且美观的大袋包装。
功能特点
01
全自动包装流程
自动上袋、计量、灌装、缝包、成品包装输出，实现无人化包装流程。
02
广泛的包装范围
专为大包装设计，适用于25kg-50kg的各类物料包装。
03
快速切换规格
设备可保存参数组，一键切换规格，并自动调整设备。
04
双工位伺服电机驱动
高效的双工位包装，关键动作伺服电机驱动，速度快，动作控制精准稳定。
05
三级给料 精密称量
秤体采用三级给料方式，分快速加、中速加、慢速加，保证速度和精度。
技术参数
DCS-50BZD-600A | 全自动大袋定量包装机（25-50kg）
Specification | Parameter |
| Packing range | 25-50kg（Rice for example） |
| Packing speed | 600 packages/h |
| Packaging error | 5~15g |
| Size range of bag | Width: 240-380mm Length: 470-770mm |
| Finished Bag conveying height | 775-1055 mm |
| Power consumption | 4N-AC380V 50HZ 3kw |
| Air source requirements | 0.6mpa 20m3/h |
| Dimensions | length 5080* width 3160* height 3540 (mm) |
| Vacuum degree (MPa) | -0.07-0 (adjustable) |
Main components configuration
| No. | Component Name | Brand/Manufacturer |
|---|---|---|
| 1 | Programmable Logic Controller (PLC) | Siemens (Germany) |
| 2 | Expansion Module | Siemens (Germany) |
| 3 | Touch Screen | Beijer (Sweden) |
| 4 | Servo Drive | Delta (Taiwan) |
| 5 | Electric Cylinder | Zolay (China) |
| 6 | Electric Linear Actuator | Huifeng (China) |
| 7 | Switching Power Supply | Mean Well (Taiwan) |
| 8 | Terminal Block | Phoenix Contact (Germany) |
| 9 | Circuit Breaker & Contactor | Schneider (France) |
| 10 | Push Button Switch | Schneider (France) |
| 11 | Proximity Sensor | Schneider (France) |
| 12 | Pneumatic Components | Airtac (Taiwan) |
| 13 | Weighing Control Module | German Tech (China) |
| 14 | Vacuum Pump | Becker (Germany) |
| 15 | Temperature Controller | Omron (Japan) |
| 16 | Electronic Vacuum Gauge | Kingdon (Taiwan) |
Related Application Scenarios
Rich product system that can be applied to various industry scenarios
-
The rice packagingThe rice packaging industry is rapidly transitioning from manual operations to automation and intelligence. Facing multiple needs including moisture prevention, freshness preservation, efficiency improvement, and cost control, intelligent packaging systems have become key to industry upgrading. -
The coarse grain packagingThe coarse grain packaging sector faces challenges including small batch sizes, multiple varieties, and high-frequency production. Yujie's smart packaging system provides tailored solutions with precise weighing, rapid changeover, and high-efficiency packaging. This helps producers maintain freshness while meeting market demand for diverse and convenient packaging formats.
