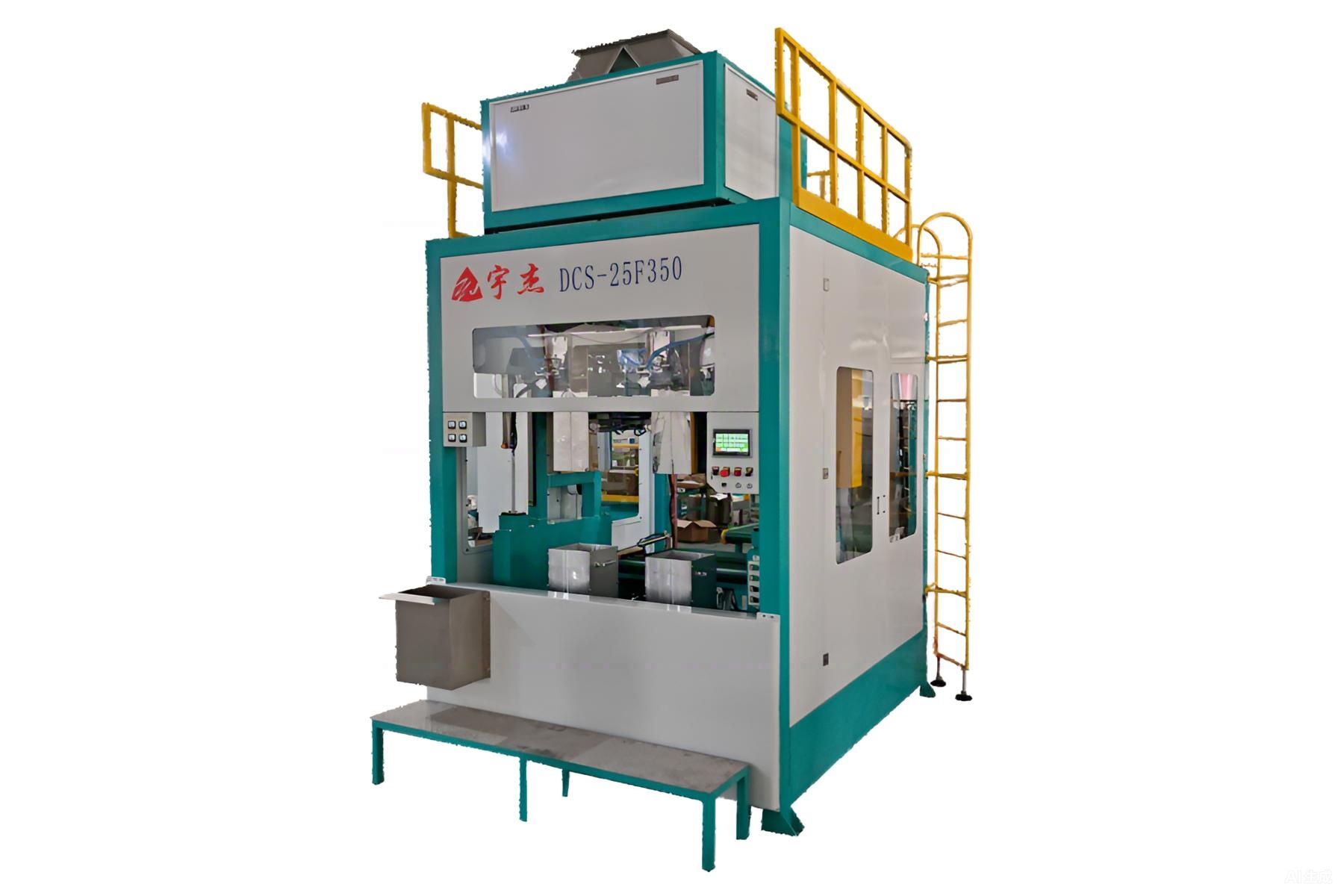

EnglishDCS-25F350 | 半自动六面大袋真空包装机
使用我们的半自动六面机器，实现高速、稳定且美观的真空包装。
Packaging Finished Product Display
瓜子六面真空包装
瓜子六面真空包装
花生六面真空包装
Features
01
自动化程度高
自动计量、灌装、抽真空成型、成品输出，仅需一人手动上袋即可完成全流程。
02
广泛的包装范围
成型机构容量范围宽，为5KG~25KG，适用于各种尺寸的包装
03
快速切换规格
设备可保存参数组，一键切换规格，并自动调整设备。
04
双伺服电机双工位
配备两个工位包装，动作由伺服电机驱动，运行精准稳定。
05
三级给料 精准称量
秤体采用三级给料方式，分快速加、中速加、慢速加，速度快，精度高。
技术参数
DCS-5F350 | 半自动六面大袋真空包装机
宽80-235 长度130-335 厚度 30-80
Specification | Parameter |
| Packing range | 5kg~25kg |
| Packing speed | 350 packages/hour |
| Packaging error | 2~5g |
| Finished Brick-pack size range | Width: 220-350 Length: 300-530 Height: 100-240 |
| Power consumption | AC380V 50HZ 9kw |
| Air source requirements | 0.6mpa 8m3/h |
| Dimensions | length 2377* width 3990* height 3867 (mm) |
| Vacuum degree (MPa) | -0.07-0 (adjustable) |
| No. | Component Name | Brand/Manufacturer |
|---|---|---|
| 1 | PLC (Programmable Logic Controller) | Siemens (Germany) |
| 2 | Expansion Module | Siemens (Germany) |
| 3 | HMI Touch Panel | Beijer (Sweden) |
| 4 | Servo Drive | Delta (Taiwan) |
| 5 | Electric Cylinder | Inovance (China) |
| 6 | Switching Power Supply | Mean Well (Taiwan) |
| 7 | Terminal Blocks | Phoenix Contact (Germany) |
| 8 | Circuit Breaker/Contactor | Schneider (France) |
| 9 | Push Button Switch | Schneider (France) |
| 10 | Proximity Sensor | Schneider (France) |
| 11 | Pneumatic Components | Airtac (Taiwan) |
| 12 | Weighing Control Module | Germen Tech |
| 13 | Vacuum Pump | Becker (Germany) |
| 14 | Temperature Controller | Omron (Japan) |
| 15 | Electronic Vacuum Gauge | Kingdon (Taiwan) |
Related Application Scenarios
Rich product system that can be applied to various industry scenarios
-
The rice packagingThe rice packaging industry is rapidly transitioning from manual operations to automation and intelligence. Facing multiple needs including moisture prevention, freshness preservation, efficiency improvement, and cost control, intelligent packaging systems have become key to industry upgrading. -
The coarse grain packagingThe coarse grain packaging sector faces challenges including small batch sizes, multiple varieties, and high-frequency production. Yujie's smart packaging system provides tailored solutions with precise weighing, rapid changeover, and high-efficiency packaging. This helps producers maintain freshness while meeting market demand for diverse and convenient packaging formats.
