DCS-10F36B | 半自动六面/两面一体真空包装机

使用我们的半自动六面/两面一体真空包装机，实现高速、稳定、外观完美的真空包装。

包装成品展示

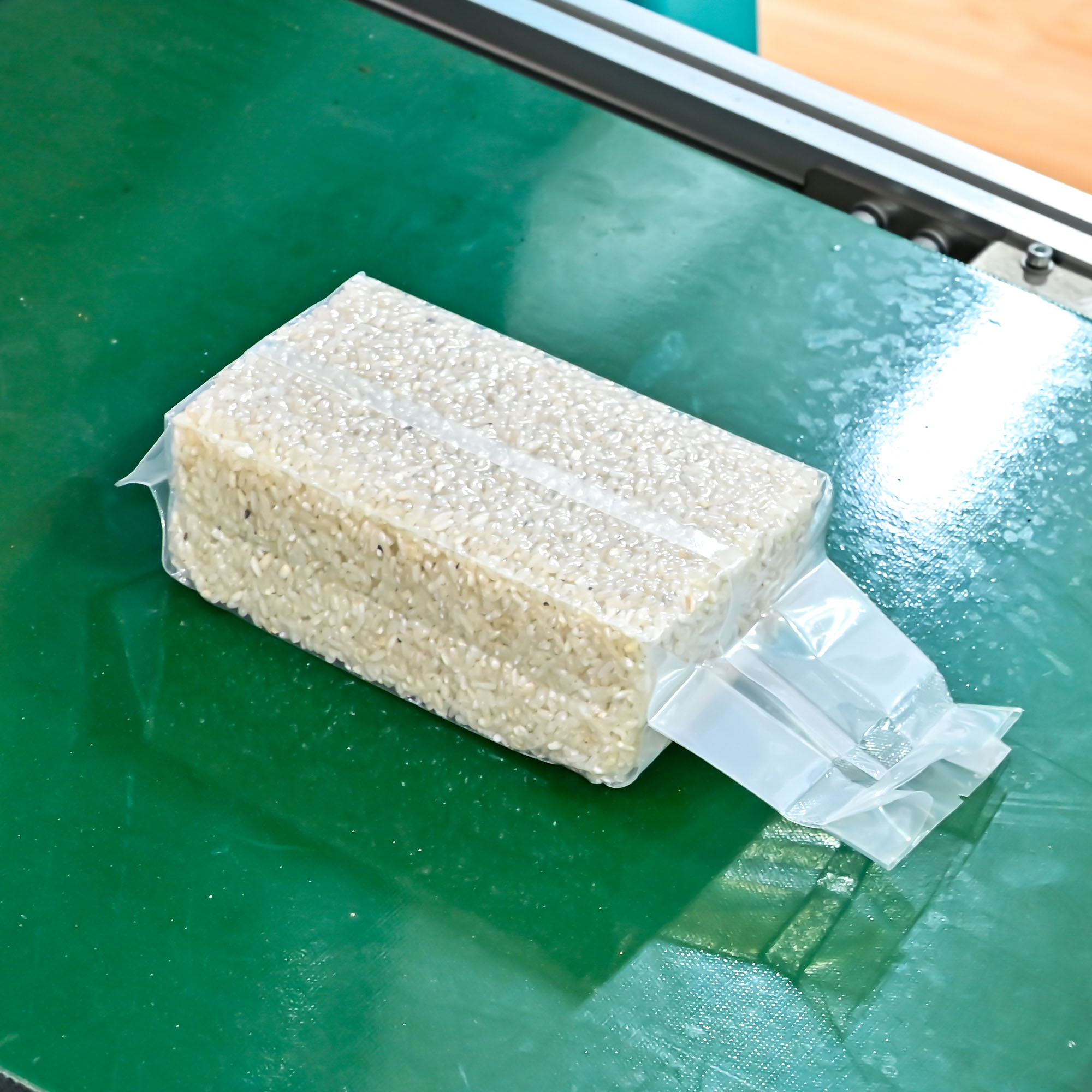

大米两面真空包装

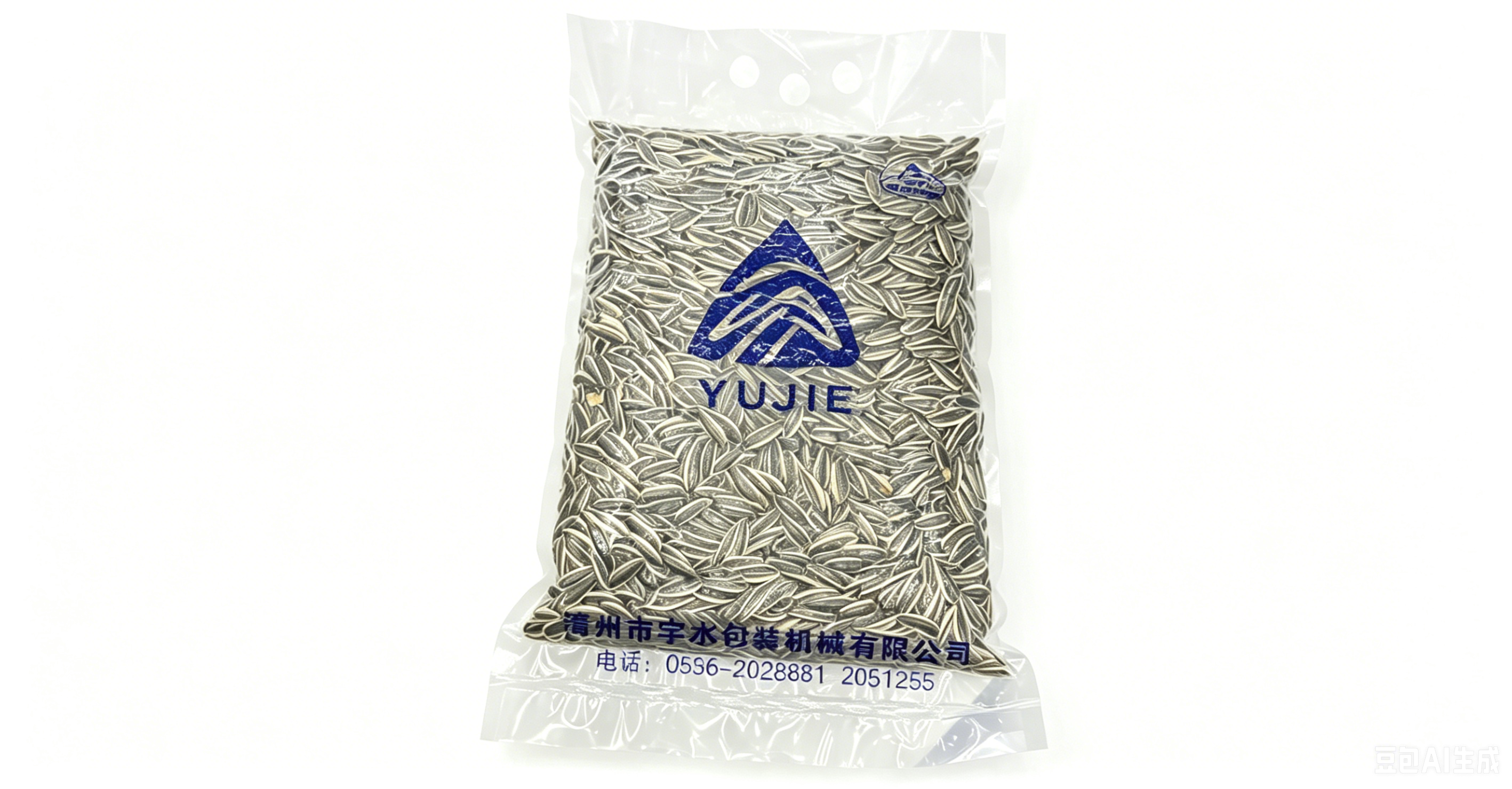

瓜子六面真空包装

瓜子两面真空包装

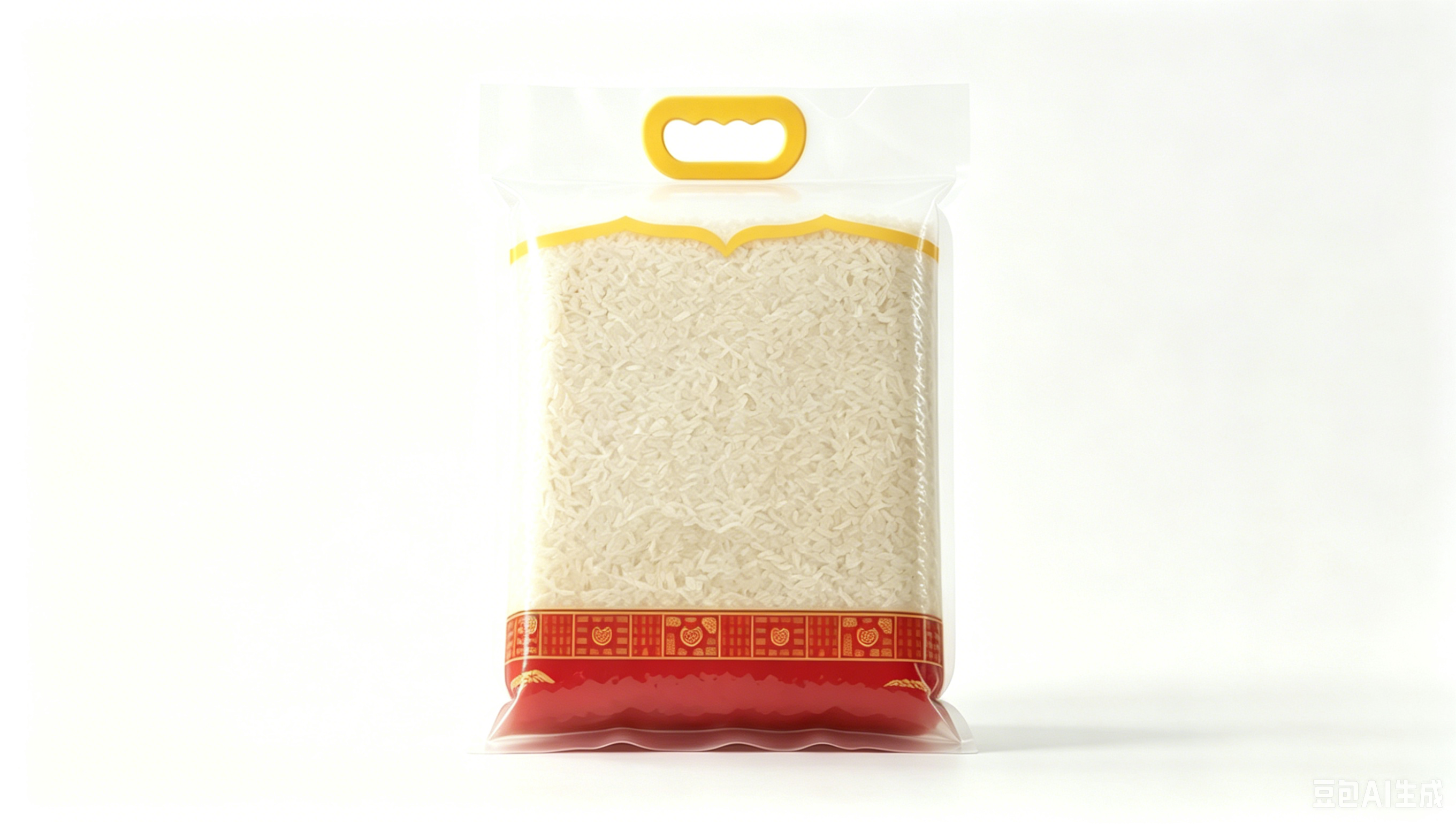

大米六面真空包装

功能特点

自动计量、灌装、抽真空成型、成品输出，仅需一人手动上袋即可完成全流程

成型机构，容量范围宽，为0.5KG~10KG，适用于各种尺寸，厚、薄形状的真空包装

设备可存储多组包装参数，一键切换不同包装规格，并自动完成设备调整

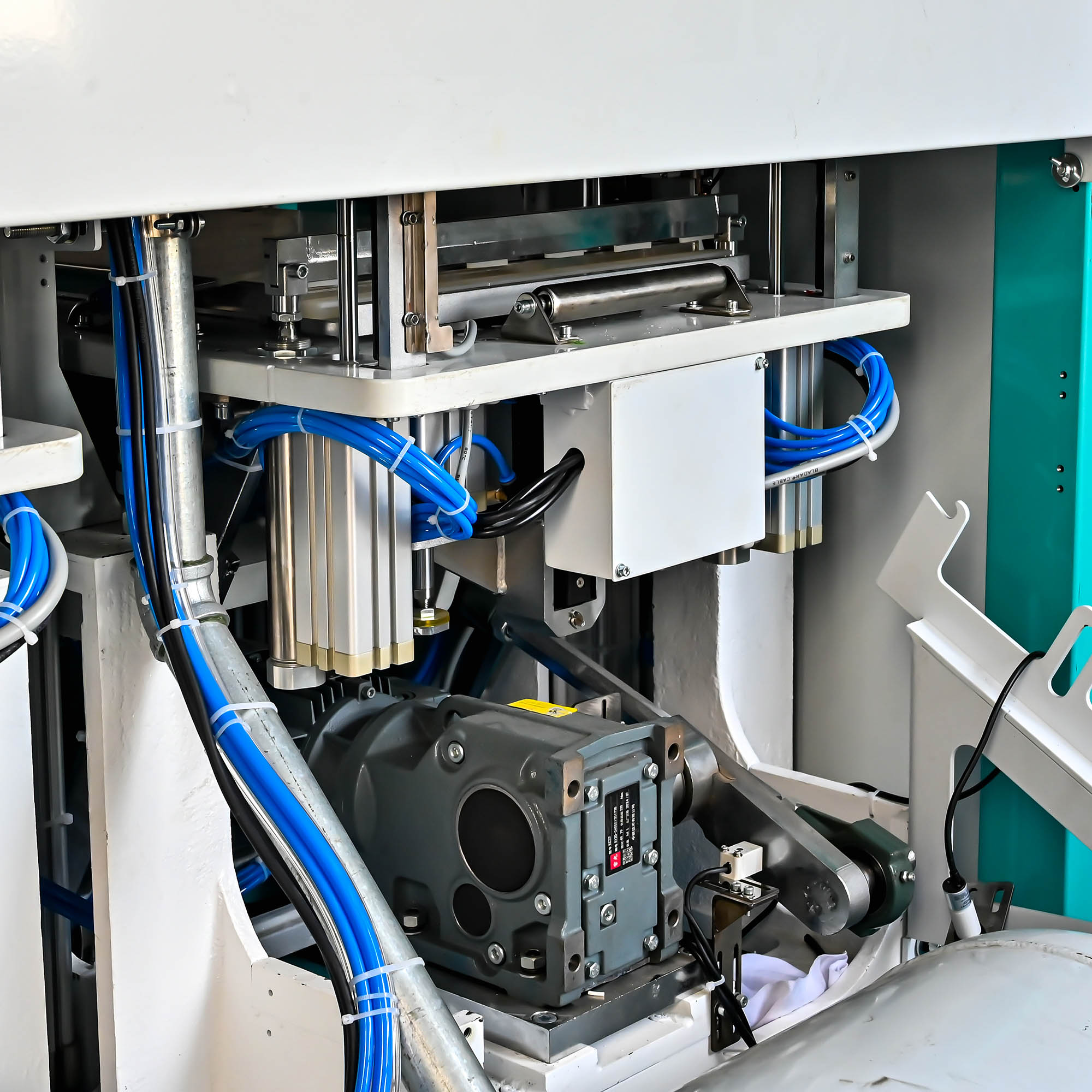

动作由伺服电机驱动，运行精准稳定，噪音小

称重系统采用三级下料，下料流程依次快加，中加，慢加，保证称重速度和精度

DCS-5F36B | 半自动六面/两面一体真空包装机

Specification	Parameter
Packing range	0.25~5kg
Packing speed	300 packages/hour (Brick-shaped) 240 packs/hour (pillow-shaped)
Packaging error	2~5g (0.2%F.S)
Power consumption	4N-AC380V 50HZ 3.5kw
Air source requirements	0.6mpa 4m3/h

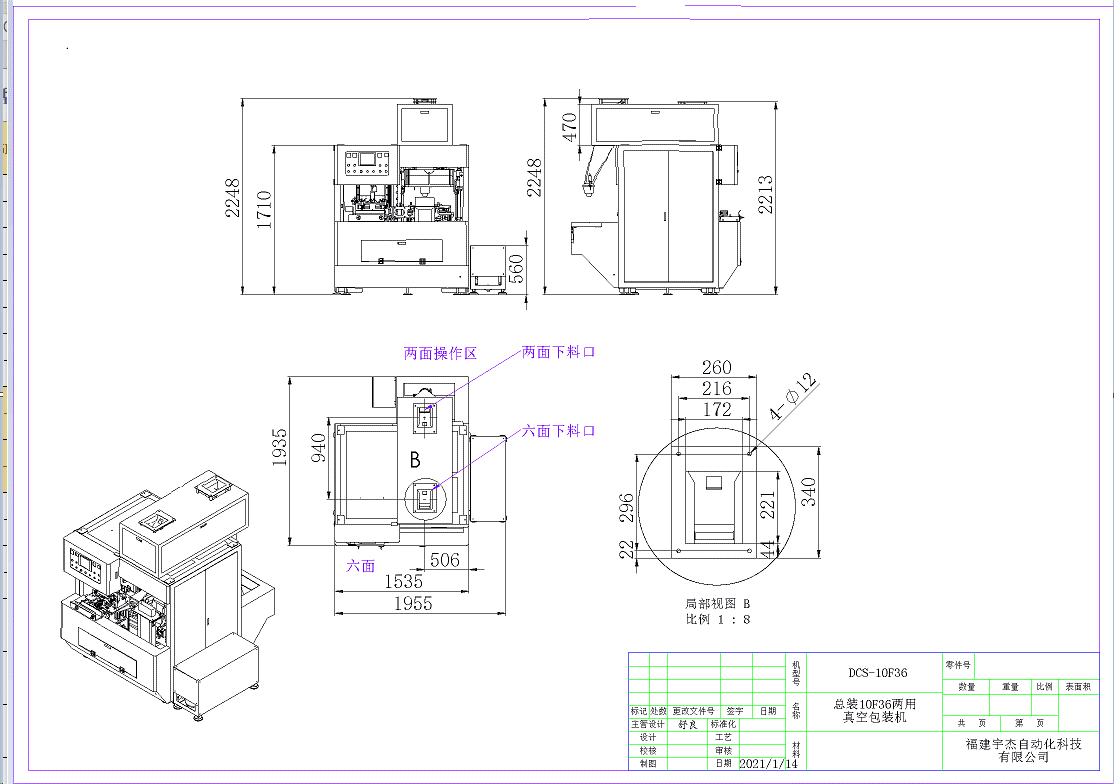

Dimensions	length 1535* width 1810* height 2213 (mm)
Vacuum degree (MPa)	-0.07-0 (adjustable)

No.	Component Name	Brand/Manufacturer
1	PLC (Programmable Logic Controller)	Siemens (Germany)
2	Expansion Module	Siemens (Germany)
3	HMI Touch Panel	Beijer (Sweden)
4	Servo Drive	Delta (Taiwan)
5	Electric Cylinder	Inovance (China)
6	Switching Power Supply	Mean Well (Taiwan)
7	Terminal Blocks	Phoenix Contact (Germany)
8	Circuit Breaker/Contactor	Schneider (France)
9	Push Button Switch	Schneider (France)
10	Proximity Sensor	Schneider (France)
11	Pneumatic Components	Airtac (Taiwan)
12	Weighing Control Module	Germen Tech
13	Vacuum Pump	Becker (Germany)
14	Temperature Controller	Omron (Japan)
15	Electronic Vacuum Gauge	Kingdon (Taiwan)

Rich product system that can be applied to various industry scenarios

The rice packaging

The rice packaging industry is rapidly transitioning from manual operations to automation and intelligence. Facing multiple needs including moisture prevention, freshness preservation, efficiency improvement, and cost control, intelligent packaging systems have become key to industry upgrading.

Learn More
The coarse grain packaging

The coarse grain packaging sector faces challenges including small batch sizes, multiple varieties, and high-frequency production. Yujie's smart packaging system provides tailored solutions with precise weighing, rapid changeover, and high-efficiency packaging. This helps producers maintain freshness while meeting market demand for diverse and convenient packaging formats.

Learn More
