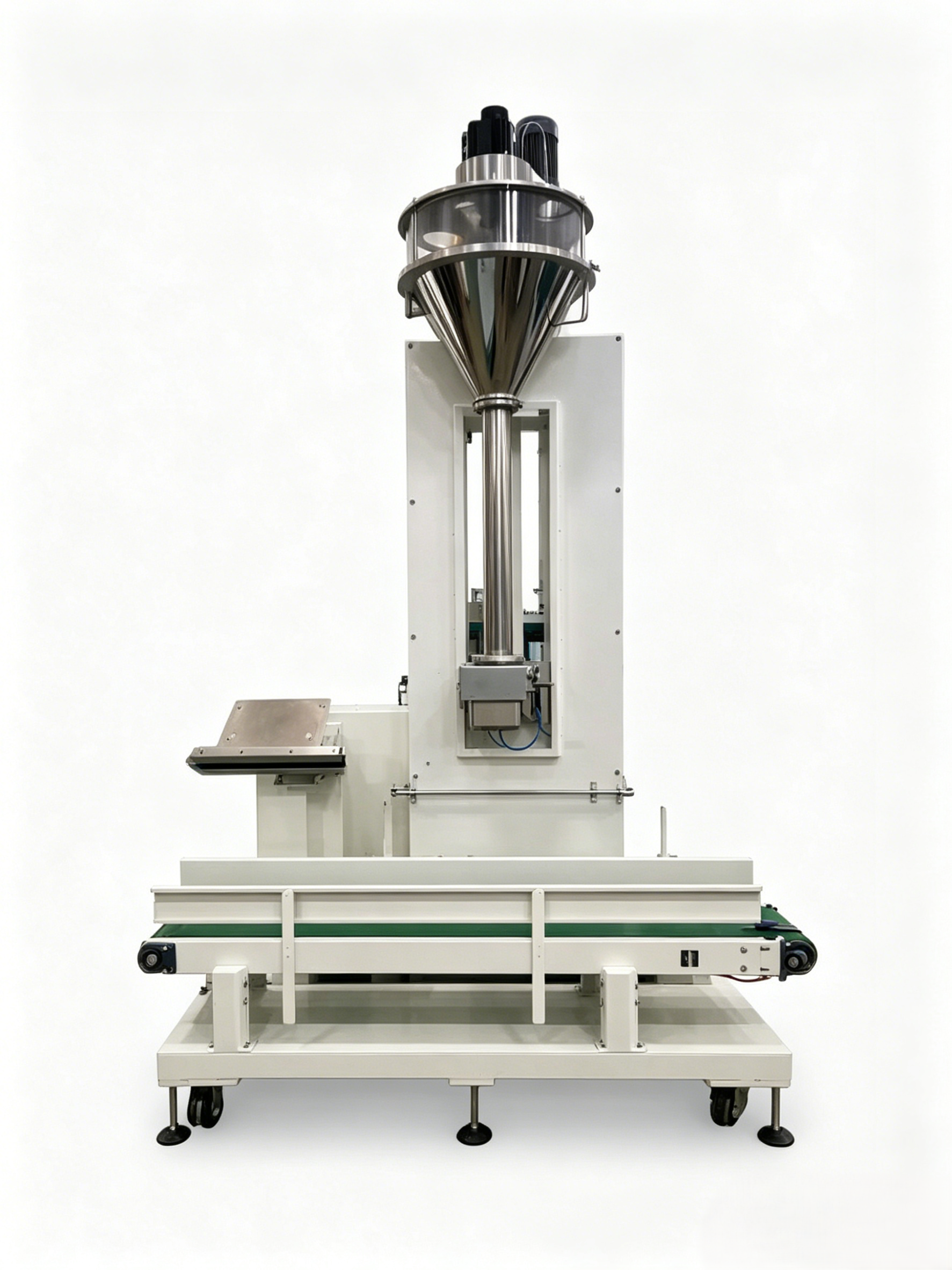

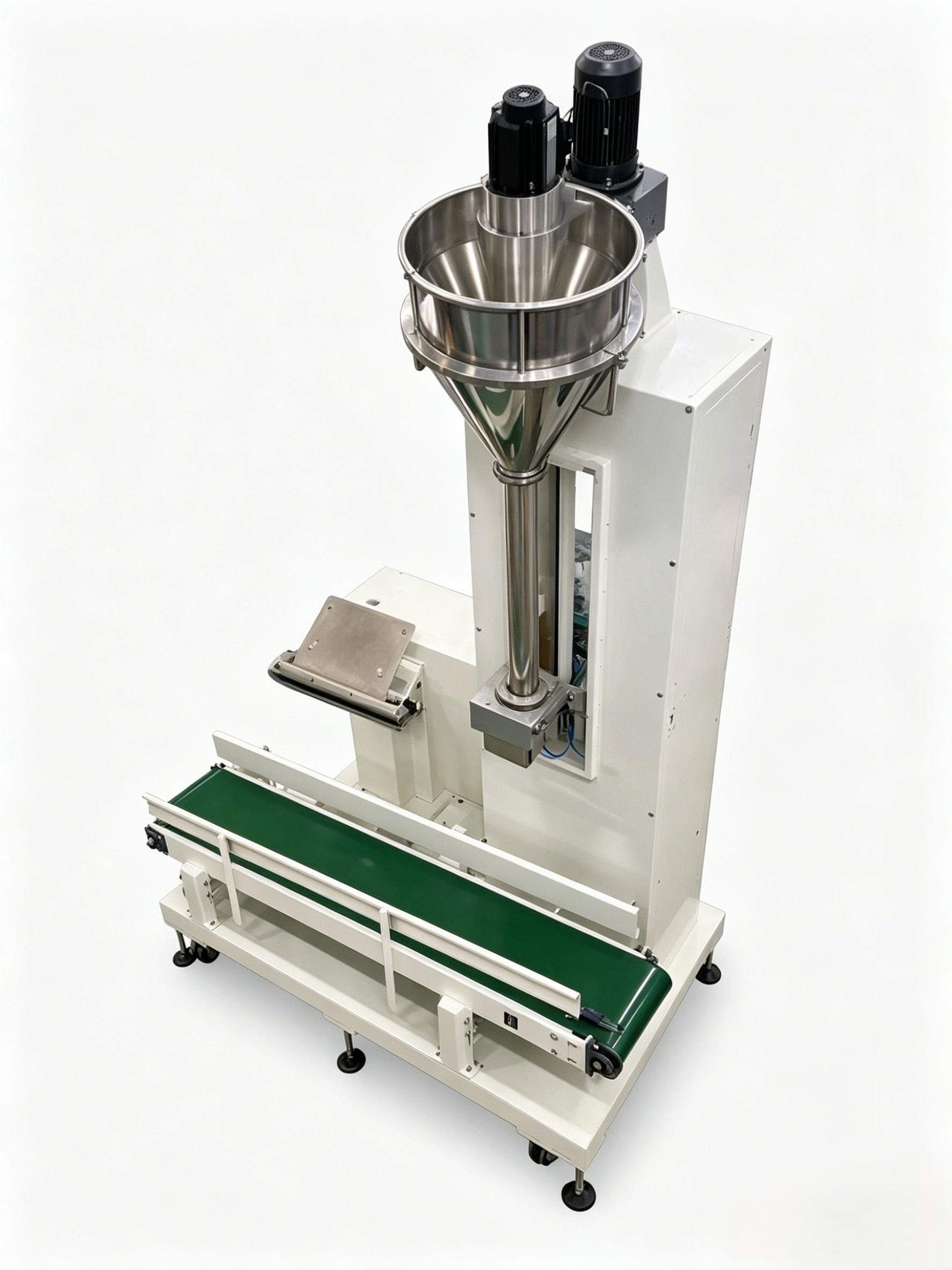

EnglishDCS-1B | Semi-automatic Powder Packing Machine
Achieve high-speed, stable packaging with our semi-automatic packing machines.
Packaging Finished Product Display
Features
01
Manual Bag Placing & Automatic Clamping
The operator manually places the bag onto the feeding mechanism; the machine automatically detects and clamps the bag opening for stable filling.
02
Automatic Weighing Control
A high‑precision electronic scale accurately weighs small‑batch materials and automatically discharges the weighed material into the bag, ensuring high metering accuracy.
03
Parameter‑Click Switch
The device can save parameter groups, switch specifications with one click, and automatically adjust the device
04
Screw Feeding with Bottom‑Impact Filling
Efficient packaging with moving workstations, powered by servo motors for precise and stable operation
05
Dust extraction port
can be equipped with a dust collection system for a cleaner work environment.
Technical Specifications
DCS-5F90A | Fully Automatic Six Sided Shaping Vacuum Packaging Machine
Specification | Parameter |
| Packing range | 1~2kg |
| Packing speed | 700 packages/h |
| Packaging error | 5~15g |
| Size range of bag | Width: 400-500mm Length: 650-800mm |
| Power consumption | AC380V 50HZ 3kw |
| Air source requirements | 0.6mpa 10m3/h |

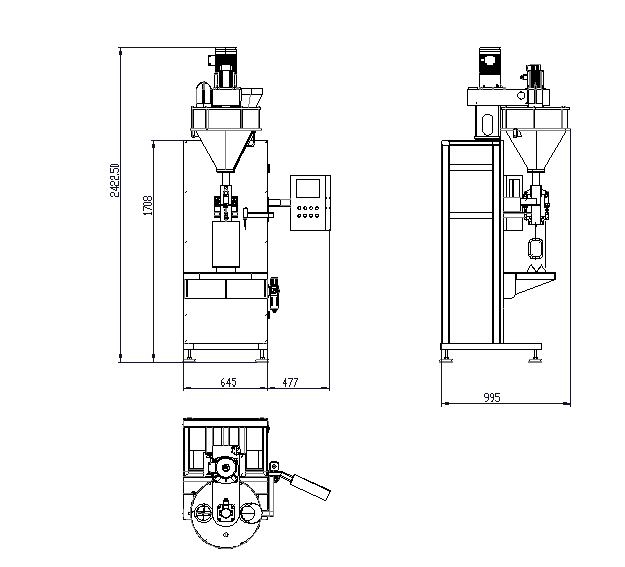

| Dimensions | length 1150* width 995* height 2450 (mm) |
| Vacuum degree (MPa) | -0.07-0 (adjustable) |
Main components configuration
| No. | Component Name | Brand/Manufacturer |
|---|---|---|
| 1 | Programmable Logic Controller (PLC) | Siemens (Germany) |
| 2 | Expansion Module | Siemens (Germany) |
| 3 | Touch Screen | Beijer (Sweden) |
| 4 | Servo Drive | Delta (Taiwan) |
| 5 | Electric Cylinder | Zolay (China) |
| 6 | Electric Linear Actuator | Huifeng (China) |
| 7 | Switching Power Supply | Mean Well (Taiwan) |
| 8 | Terminal Block | Phoenix Contact (Germany) |
| 9 | Circuit Breaker & Contactor | Schneider (France) |
| 10 | Push Button Switch | Schneider (France) |
| 11 | Proximity Sensor | Schneider (France) |
| 12 | Pneumatic Components | Airtac (Taiwan) |
| 13 | Weighing Control Module | German Tech (China) |
| 14 | Vacuum Pump | Becker (Germany) |
| 15 | Temperature Controller | Omron (Japan) |
| 16 | Electronic Vacuum Gauge | Kingdon (Taiwan) |
Related Application Scenarios
Rich product system that can be applied to various industry scenarios
-
The coarse grain packagingThe coarse grain packaging sector faces challenges including small batch sizes, multiple varieties, and high-frequency production. Yujie's smart packaging system provides tailored solutions with precise weighing, rapid changeover, and high-efficiency packaging. This helps producers maintain freshness while meeting market demand for diverse and convenient packaging formats. -
Flour packaging
